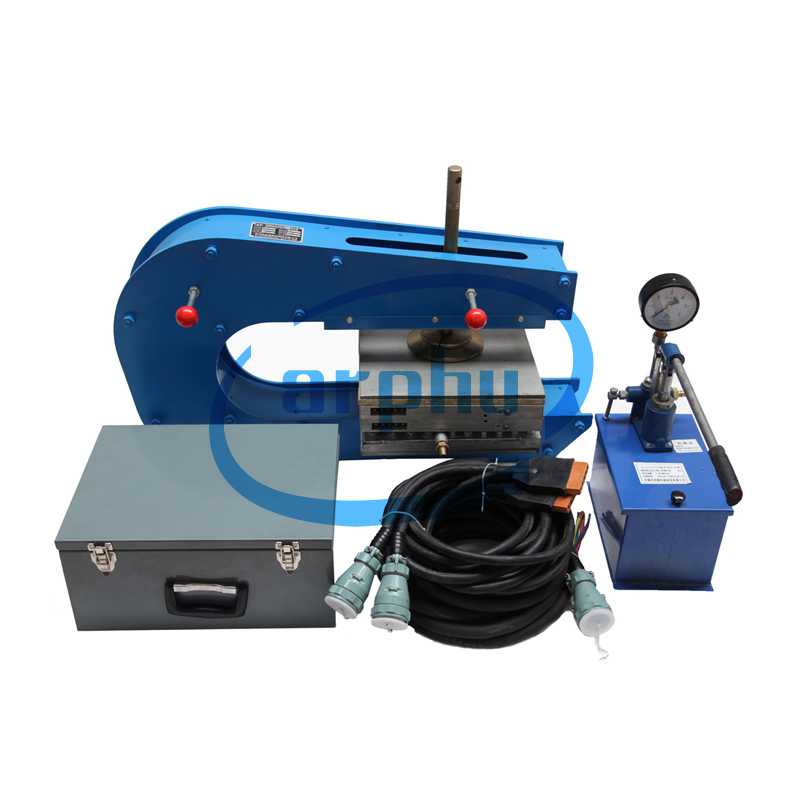

C Clamp Spot Repair Vulcanizer

General Details

During running of conveyor, due to reasons of heavy material, drop or equipment trouble may lead to spot-shape damage of conveyor belt, then we should repair it immediately.

DLBRV-I spot belt repair vulcanizer is specially used to repair small size broken and spot-shape of conveyor belt, it suits for EP, Nylon, Canvas and steel cord belt.





Technical Info

1. Heating plate size: 350*350 mm;

2. Max. Repair size: 250*250 mm;

3. Working pressure: 0.5-0.8 MPa;

4. Rated power: 2.0 KW;

5. Heating up time< 30 minutes;

6. Timer adjust range: 0-99 minutes;

7. Temperature adjust range: 0-200 ;

8. Voltage: 220-660V, 50/60HZ, 3 Phases;

9. Repair belt width: 650 mm--3200 mm;

Product Range
Model DLBRV-I
  C Clamp spot belt repair vulcanizer
Type of conveyor belt Canvas, nylon and steel cord belt
Width range(mm) 650—1400
Maximum size for belt repairing(mm) 250×250
Heating plate size(mm) 350×350
Vulcanizing temperature 145℃ Adjustable 0—200℃
Total power(Kw) 2
Voltage(V) 220-660V, 50/60HZ, 3 Phases
Temperature difference of vulcanized heating plates ±3
Vulcanization pressure(Mpa) 0.5
Warm up time(min) <30
