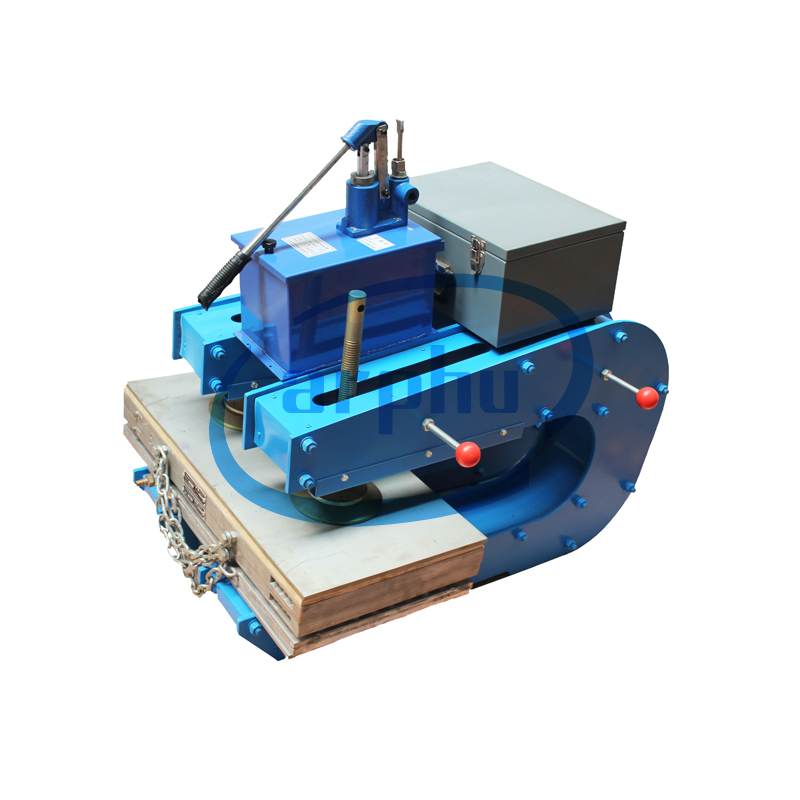

Belt Edge Repair Vulcanizer

General Details


During running of conveyor, due to reasons of deviation or equipment trouble may lead to belt edge damage of both edges of conveyor belt, then we should repair it immediately. DLCBV-II belt edge repair vulcanizer is specially used to repair edge broken of conveyor belt, it suits for EP, Nylon, Canvas and steel cord conveyor belt.



Technical Info


1. Heating plate size: 320*700 mm

2. Max. Repair size: 220*600 mm

3. Working pressure: 0.5--1.0 MPa

4. Rated power: 3.6 KW

5. Heating up time< 30 minutes

6. Timer adjust range: 0-99 minutes

7. Temperature adjust range: 0-200

8. Voltage: 220-660V, 50/60HZ, 3 Phases



Product Range
Model DLBRV-II
Belt edge repair vulcanizer
Type of conveyor belt Canvas, nylon and steel cord belt
Width range(mm) All
Maximum size for belt repairing(mm) 220×600
Heating plate size(mm) 320×700
Vulcanizing temperature 145℃ Adjustable 0—200℃
Total power(Kw) 3.6
Voltage(V) 220-660V, 50/60HZ, 3 Phases
Temperature difference of vulcanized heating plates ±3
Vulcanization pressure(Mpa) 0.5
Warm up time(min) < 30
